Rancher 导入集群

导入集群

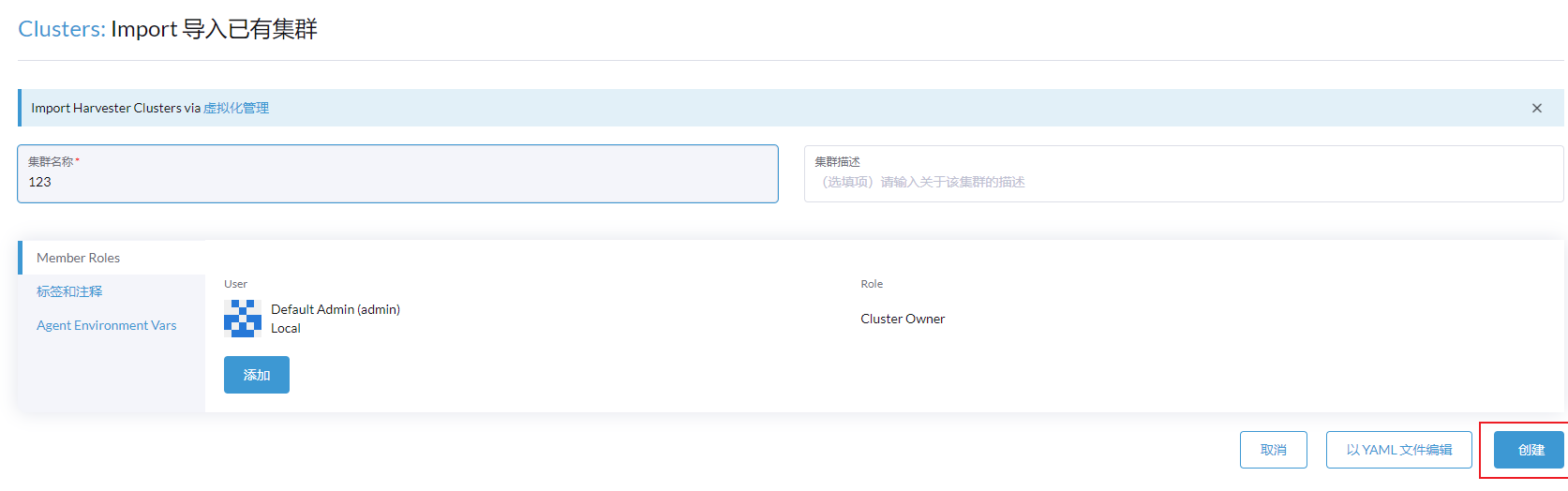

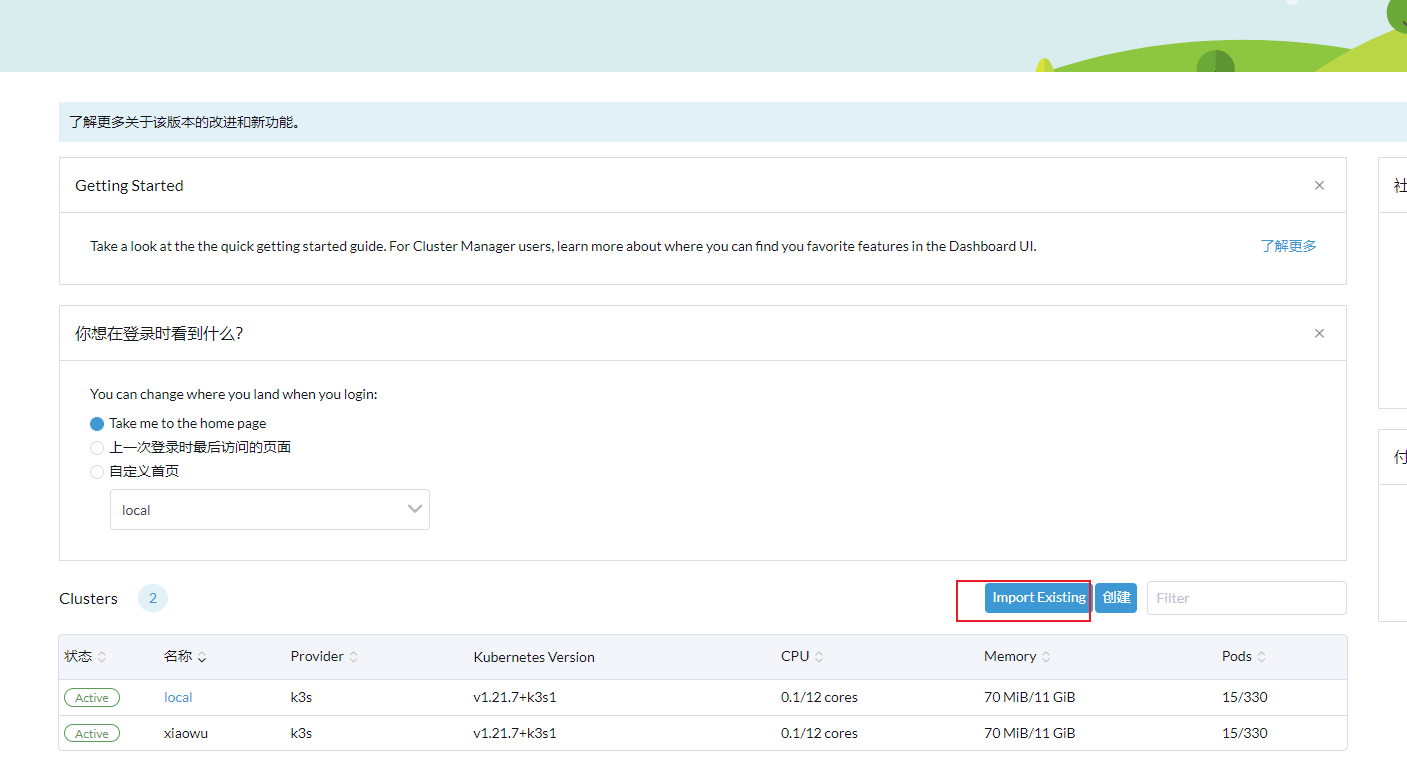

进入之后选择导入已有集群，随后进入此页面，点击创建

对于自签证书选择第二项，复制，然后在 K3s server 节点执行

问题

error: no objects passed to apply

这里的问题主要是无法连接到部署 Rancher 的主机，无法获取 yaml 文件导致的。可以将 yaml 文件直接下载到 K3s server，再手动执行 kubectl apply -f {xxx}.yaml

（针对配置了 `--tls-san` 参数 - 自签证书）可能会执行失败，提示域名 rancher.k3s.cn 不识别（前面的证书域名以及对应 IP）

更新资源的字段

# because the cert was made by myself, so i need configured the hosts, otherwise it does not know my cert's domain name, unless you used ip instead of domain name
kubectl -n cattle-system patch deployments rancher --patch '{
    "spec": {
        "template": {
            "spec": {
                "hostAliases": [
                    {
                      "hostnames":
                      [
                        "rancher.k3s.cn"
                      ],
                      "ip": "192.168.56.100"
                    }
                ]
            }
        }
    }
}'

kubectl -n cattle-system patch deployments cattle-cluster-agent --patch '{
    "spec": {
        "template": {
            "spec": {
                "hostAliases": [
                    {
                      "hostnames":
                      [
                        "rancher.k3s.cn"
                      ],
                      "ip": "192.168.56.100"
                    }
                ]
            }
        }
    }
}'

（针对 Helm 安装方式）出现 [Ready False [Disconnected] Cluster agent is not connected] 问题

参考：https://github.com/rancher/rancher/issues/36589

# 得到 <REPLACE_WITH_CLUSTERID>
kubectl get clusters.management.cattle.io

# 替换 <REPLACE_WITH_CLUSTERID>
kubectl patch clusters.management.cattle.io <REPLACE_WITH_CLUSTERID> -p '{"status":{"agentImage":"dummy"}}' --type merge

查看启动情况

kubectl get pods -n cattle-system -o wide
# NAME                                    READY   STATUS      RESTARTS   AGE   IP           NODE        NOMINATED NODE   READINESS GATES
# cattle-cluster-agent-56855585c4-h4jj9   1/1     Running     0          13m   10.42.2.10   k3s-node3   <none>           <none>
# cattle-cluster-agent-56855585c4-n76gp   1/1     Running     0          13m   10.42.1.8    k3s-node2   <none>           <none>
# helm-operation-dpvhn                    0/2     Completed   0          24m   10.42.2.3    k3s-node3   <none>           <none>
# helm-operation-l9psd                    0/2     Completed   0          14m   10.42.2.8    k3s-node3   <none>           <none>
# helm-operation-xvmzb                    0/2     Completed   0          24m   10.42.2.4    k3s-node3   <none>           <none>
# helm-operation-zqhk8                    0/2     Completed   0          24m   10.42.2.5    k3s-node3   <none>           <none>
# rancher-8754895f9-9g58q                 1/1     Running     0          26m   10.42.1.3    k3s-node2   <none>           <none>
# rancher-webhook-6979fbd4bf-zh8gt        1/1     Running     0          24m   10.42.1.6    k3s-node2   <none>           <none>

kubectl logs cattle-cluster-agent-56855585c4-h4jj9 -n cattle-system
# INFO: Environment: CATTLE_ADDRESS=10.42.2.10 CATTLE_CA_CHECKSUM=5ae946e89c419fd7f06d394c4a883abddda422c9912c2eb9c00e443072adaa3f CATTLE_CLUSTER=true CATTLE_CLUSTER_AGENT_PORT=tcp://10.43.76.16:80 CATTLE_CLUSTER_AGENT_PORT_443_TCP=tcp://10.43.76.16:443 CATTLE_CLUSTER_AGENT_PORT_443_TCP_ADDR=10.43.76.16 CATTLE_CLUSTER_AGENT_PORT_443_TCP_PORT=443 CATTLE_CLUSTER_AGENT_PORT_443_TCP_PROTO=tcp CATTLE_CLUSTER_AGENT_PORT_80_TCP=tcp://10.43.76.16:80 CATTLE_CLUSTER_AGENT_PORT_80_TCP_ADDR=10.43.76.16 CATTLE_CLUSTER_AGENT_PORT_80_TCP_PORT=80 CATTLE_CLUSTER_AGENT_PORT_80_TCP_PROTO=tcp CATTLE_CLUSTER_AGENT_SERVICE_HOST=10.43.76.16 CATTLE_CLUSTER_AGENT_SERVICE_PORT=80 CATTLE_CLUSTER_AGENT_SERVICE_PORT_HTTP=80 CATTLE_CLUSTER_AGENT_SERVICE_PORT_HTTPS_INTERNAL=443 CATTLE_CLUSTER_REGISTRY= CATTLE_FEATURES=embedded-cluster-api=false,fleet=false,monitoringv1=false,multi-cluster-management=false,multi-cluster-management-agent=true,provisioningv2=false,rke2=false CATTLE_INTERNAL_ADDRESS= CATTLE_IS_RKE=false CATTLE_K8S_MANAGED=true CATTLE_NODE_NAME=cattle-cluster-agent-56855585c4-h4jj9 CATTLE_SERVER=https://rancher.k3s.cn CATTLE_SERVER_VERSION=v2.6.2
# INFO: Using resolv.conf: search cattle-system.svc.cluster.local svc.cluster.local cluster.local nameserver 10.43.0.10 options ndots:5
# INFO: https://rancher.k3s.cn/ping is accessible
# INFO: rancher.k3s.cn resolves to 192.168.56.103
# INFO: Value from https://rancher.k3s.cn/v3/settings/cacerts is an x509 certificate
# time="2022-02-28T01:47:19Z" level=info msg="Listening on /tmp/log.sock"
# time="2022-02-28T01:47:19Z" level=info msg="Rancher agent version v2.6.2 is starting"
# time="2022-02-28T01:47:19Z" level=info msg="Connecting to wss://rancher.k3s.cn/v3/connect/register with token starting with js9fmwx7h5vtftr2rwljnwcbv7p"
# time="2022-02-28T01:47:19Z" level=info msg="Connecting to proxy" url="wss://rancher.k3s.cn/v3/connect/register"
# time="2022-02-28T01:47:19Z" level=info msg="Starting /v1, Kind=Service controller"
