springboot2学习笔记

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class MainApplication {

    public static void main(String[] args) {
        SpringApplication.run(MainApplication.class, args);
    }
}

import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class HelloController {
    @RequestMapping("/hello")
    public String handle01(){
        return "Hello, Spring Boot 2!";
    }
}

public static void main(String[] args) {
    //1、返回我们IOC容器
    ConfigurableApplicationContext run = SpringApplication.run(MainApplication.class, args);

    //2、查看容器里面的组件
    String[] names = run.getBeanDefinitionNames();
    for (String name : names) {
        System.out.println(name);
    }
}

@SpringBootApplication
等同于
@SpringBootConfiguration
@EnableAutoConfiguration
@ComponentScan("com.lun")

/**
 * 1、配置类里面使用@Bean标注在方法上给容器注册组件，默认也是单实例的
 * 2、配置类本身也是组件
 * 3、proxyBeanMethods：代理bean的方法
 *      Full(proxyBeanMethods = true)（保证每个@Bean方法被调用多少次返回的组件都是单实例的）（默认）
 *      Lite(proxyBeanMethods = false)（每个@Bean方法被调用多少次返回的组件都是新创建的）
 */
@Configuration(proxyBeanMethods = false) //告诉SpringBoot这是一个配置类 == 配置文件
public class MyConfig {

    /**
     * Full:外部无论对配置类中的这个组件注册方法调用多少次获取的都是之前注册容器中的单实例对象
     * @return
     */
    @Bean //给容器中添加组件。以方法名作为组件的id。返回类型就是组件类型。返回的值，就是组件在容器中的实例
    public User user01(){
        User zhangsan = new User("zhangsan", 18);
        //user组件依赖了Pet组件
        zhangsan.setPet(tomcatPet());
        return zhangsan;
    }

    @Bean("tom")
    public Pet tomcatPet(){
        return new Pet("tomcat");
    }
}

@SpringBootConfiguration
@EnableAutoConfiguration
@ComponentScan("com.atguigu.boot")
public class MainApplication {

    public static void main(String[] args) {
    //1、返回我们IOC容器
        ConfigurableApplicationContext run = SpringApplication.run(MainApplication.class, args);

    //2、查看容器里面的组件
        String[] names = run.getBeanDefinitionNames();
        for (String name : names) {
            System.out.println(name);
        }

    //3、从容器中获取组件
        Pet tom01 = run.getBean("tom", Pet.class);
        Pet tom02 = run.getBean("tom", Pet.class);
        System.out.println("组件："+(tom01 == tom02));

    //4、com.atguigu.boot.config.MyConfig$$EnhancerBySpringCGLIB$$51f1e1ca@1654a892
        MyConfig bean = run.getBean(MyConfig.class);
        System.out.println(bean);

    //如果@Configuration(proxyBeanMethods = true)代理对象调用方法。SpringBoot总会检查这个组件是否在容器中有。
        //保持组件单实例
        User user = bean.user01();
        User user1 = bean.user01();
        System.out.println(user == user1);

        User user01 = run.getBean("user01", User.class);
        Pet tom = run.getBean("tom", Pet.class);

        System.out.println("用户的宠物："+(user01.getPet() == tom));
    }
}

@Import({User.class, DBHelper.class})
@Configuration(proxyBeanMethods = false) //告诉SpringBoot这是一个配置类 == 配置文件
public class MyConfig {
}

//1、返回我们IOC容器
ConfigurableApplicationContext run = SpringApplication.run(MainApplication.class, args);

//...

//5、获取组件
String[] beanNamesForType = run.getBeanNamesForType(User.class);

for (String s : beanNamesForType) {
    System.out.println(s);
}

DBHelper bean1 = run.getBean(DBHelper.class);
System.out.println(bean1);

@Configuration(proxyBeanMethods = false)
@ConditionalOnMissingBean(name = "tom")//没有tom名字的Bean时，MyConfig类的Bean才能生效。
public class MyConfig {

    @Bean
    public User user01(){
        User zhangsan = new User("zhangsan", 18);
        zhangsan.setPet(tomcatPet());
        return zhangsan;
    }

    @Bean("tom22")
    public Pet tomcatPet(){
        return new Pet("tomcat");
    }
}

public static void main(String[] args) {
    //1、返回我们IOC容器
    ConfigurableApplicationContext run = SpringApplication.run(MainApplication.class, args);

    //2、查看容器里面的组件
    String[] names = run.getBeanDefinitionNames();
    for (String name : names) {
        System.out.println(name);
    }

    boolean tom = run.containsBean("tom");
    System.out.println("容器中Tom组件："+tom);//false

    boolean user01 = run.containsBean("user01");
    System.out.println("容器中user01组件："+user01);//true

    boolean tom22 = run.containsBean("tom22");
    System.out.println("容器中tom22组件："+tom22);//true

}

@ImportResource("classpath:beans.xml")
public class MyConfig {
...
}

public static void main(String[] args) {
    //1、返回我们IOC容器
    ConfigurableApplicationContext run = SpringApplication.run(MainApplication.class, args);

	boolean haha = run.containsBean("haha");
	boolean hehe = run.containsBean("hehe");
	System.out.println("haha："+haha);//true
	System.out.println("hehe："+hehe);//true
}

public class getProperties {
     public static void main(String[] args) throws FileNotFoundException, IOException {
         Properties pps = new Properties();
         pps.load(new FileInputStream("a.properties"));
         Enumeration enum1 = pps.propertyNames();//得到配置文件的名字
         while(enum1.hasMoreElements()) {
             String strKey = (String) enum1.nextElement();
             String strValue = pps.getProperty(strKey);
             System.out.println(strKey + "=" + strValue);
             //封装到JavaBean。
         }
     }
 }

@Component
@ConfigurationProperties(prefix = "mycar")
public class Car {
...
}

@EnableConfigurationProperties(Car.class)
public class MyConfig {
...
}
@ConfigurationProperties(prefix = "mycar")
public class Car {
...
}

@SpringBootApplication
public class MainApplication {

    public static void main(String[] args) {
        SpringApplication.run(MainApplication.class, args);
    }

}

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@SpringBootConfiguration
@EnableAutoConfiguration
@ComponentScan(
    excludeFilters = {@Filter(
    type = FilterType.CUSTOM,
    classes = {TypeExcludeFilter.class}
), @Filter(
    type = FilterType.CUSTOM,
    classes = {AutoConfigurationExcludeFilter.class}
)}
)
public @interface SpringBootApplication {
    ...
}

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Configuration
public @interface SpringBootConfiguration {
    @AliasFor(
        annotation = Configuration.class
    )
    boolean proxyBeanMethods() default true;
}

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@AutoConfigurationPackage
@Import(AutoConfigurationImportSelector.class)
public @interface EnableAutoConfiguration {
    String ENABLED_OVERRIDE_PROPERTY = "spring.boot.enableautoconfiguration";

    Class<?>[] exclude() default {};

    String[] excludeName() default {};
}

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@Import(AutoConfigurationPackages.Registrar.class)//给容器中导入一个组件
public @interface AutoConfigurationPackage {
    String[] basePackages() default {};

    Class<?>[] basePackageClasses() default {};
}

@Configuration(
    proxyBeanMethods = false
)
@ConditionalOnProperty(
    prefix = "spring.aop",
    name = "auto",
    havingValue = "true",
    matchIfMissing = true
)
public class AopAutoConfiguration {
    public AopAutoConfiguration() {
    }
	...
}

@Bean
@ConditionalOnBean(MultipartResolver.class)  //容器中有这个类型组件
@ConditionalOnMissingBean(name = DispatcherServlet.MULTIPART_RESOLVER_BEAN_NAME) //容器中没有这个名字 multipartResolver 的组件
public MultipartResolver multipartResolver(MultipartResolver resolver) {
	//给@Bean标注的方法传入了对象参数，这个参数的值就会从容器中找。
	//SpringMVC multipartResolver。防止有些用户配置的文件上传解析器不符合规范
	// Detect if the user has created a MultipartResolver but named it incorrectly
	return resolver;//给容器中加入了文件上传解析器；
}

@NoArgsConstructor
//@AllArgsConstructor
@Data
@ToString
@EqualsAndHashCode
public class User {

    private String name;
    private Integer age;

    private Pet pet;

    public User(String name,Integer age){
        this.name = name;
        this.age = age;
    }
}

@Slf4j
@RestController
public class HelloController {
    @RequestMapping("/hello")
    public String handle01(@RequestParam("name") String name){
        log.info("请求进来了....");
        return "Hello, Spring Boot 2!"+"你好："+name;
    }
}

@Data
public class Person {
    private String userName;
    private Boolean boss;
    private Date birth;
    private Integer age;
    private Pet pet;
    private String[] interests;
    private List<String> animal;
    private Map<String, Object> score;
    private Set<Double> salarys;
    private Map<String, List<Pet>> allPets;
}

@Data
public class Pet {
    private String name;
    private Double weight;
}

@Configuration(proxyBeanMethods = false)
@ConditionalOnWebApplication(type = Type.SERVLET)
@ConditionalOnClass({ Servlet.class, DispatcherServlet.class, WebMvcConfigurer.class })
@ConditionalOnMissingBean(WebMvcConfigurationSupport.class)
@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE + 10)
@AutoConfigureAfter({ DispatcherServletAutoConfiguration.class, TaskExecutionAutoConfiguration.class,
		ValidationAutoConfiguration.class })
public class WebMvcAutoConfiguration {
    ...
}

@Configuration(proxyBeanMethods = false)
@Import(EnableWebMvcConfiguration.class)
@EnableConfigurationProperties({ WebMvcProperties.class, ResourceProperties.class })
@Order(0)
public static class WebMvcAutoConfigurationAdapter implements WebMvcConfigurer {
    ...
}

有参构造器所有参数的值都会从容器中确定
public WebMvcAutoConfigurationAdapter(WebProperties webProperties, WebMvcProperties mvcProperties,
		ListableBeanFactory beanFactory, ObjectProvider<HttpMessageConverters> messageConvertersProvider,
		ObjectProvider<ResourceHandlerRegistrationCustomizer> resourceHandlerRegistrationCustomizerProvider,
		ObjectProvider<DispatcherServletPath> dispatcherServletPath,
		ObjectProvider<ServletRegistrationBean<?>> servletRegistrations) {
	this.mvcProperties = mvcProperties;
	this.beanFactory = beanFactory;
	this.messageConvertersProvider = messageConvertersProvider;
	this.resourceHandlerRegistrationCustomizer = resourceHandlerRegistrationCustomizerProvider.getIfAvailable();
	this.dispatcherServletPath = dispatcherServletPath;
	this.servletRegistrations = servletRegistrations;
	this.mvcProperties.checkConfiguration();
}

...
public class WebMvcAutoConfiguration {
    ...
	public static class EnableWebMvcConfiguration extends DelegatingWebMvcConfiguration implements ResourceLoaderAware {
        ...
		@Override
		protected void addResourceHandlers(ResourceHandlerRegistry registry) {
			super.addResourceHandlers(registry);
			if (!this.resourceProperties.isAddMappings()) {
				logger.debug("Default resource handling disabled");
				return;
			}
			ServletContext servletContext = getServletContext();
			addResourceHandler(registry, "/webjars/**", "classpath:/META-INF/resources/webjars/");
			addResourceHandler(registry, this.mvcProperties.getStaticPathPattern(), (registration) -> {
				registration.addResourceLocations(this.resourceProperties.getStaticLocations());
				if (servletContext != null) {
					registration.addResourceLocations(new ServletContextResource(servletContext, SERVLET_LOCATION));
				}
			});
		}
        ...

    }
    ...
}

@ConfigurationProperties(prefix = "spring.resources", ignoreUnknownFields = false)
public class ResourceProperties {

    private static final String[] CLASSPATH_RESOURCE_LOCATIONS = { "classpath:/META-INF/resources/",
            "classpath:/resources/", "classpath:/static/", "classpath:/public/" };

    /**
     * Locations of static resources. Defaults to classpath:[/META-INF/resources/,
     * /resources/, /static/, /public/].
     */
    private String[] staticLocations = CLASSPATH_RESOURCE_LOCATIONS;
    ...
}

...
public class WebMvcAutoConfiguration {
    ...
	public static class EnableWebMvcConfiguration extends DelegatingWebMvcConfiguration implements ResourceLoaderAware {
        ...
		@Bean
		public WelcomePageHandlerMapping welcomePageHandlerMapping(ApplicationContext applicationContext,
				FormattingConversionService mvcConversionService, ResourceUrlProvider mvcResourceUrlProvider) {
			WelcomePageHandlerMapping welcomePageHandlerMapping = new WelcomePageHandlerMapping(
					new TemplateAvailabilityProviders(applicationContext), applicationContext, getWelcomePage(),
					this.mvcProperties.getStaticPathPattern());
			welcomePageHandlerMapping.setInterceptors(getInterceptors(mvcConversionService, mvcResourceUrlProvider));
			welcomePageHandlerMapping.setCorsConfigurations(getCorsConfigurations());
			return welcomePageHandlerMapping;
		}


WelcomePageHandlerMapping(TemplateAvailabilityProviders templateAvailabilityProviders,
                          ApplicationContext applicationContext, Resource welcomePage, String staticPathPattern) {
    if (welcomePage != null && "/**".equals(staticPathPattern)) {
        //要用欢迎页功能，必须是/**
        logger.info("Adding welcome page: " + welcomePage);
        setRootViewName("forward:index.html");
    }
    else if (welcomeTemplateExists(templateAvailabilityProviders, applicationContext)) {
        //调用Controller /index
        logger.info("Adding welcome page template: index");
        setRootViewName("index");
    }
}

public class HiddenHttpMethodFilter extends OncePerRequestFilter {

	private static final List<String> ALLOWED_METHODS =
			Collections.unmodifiableList(Arrays.asList(HttpMethod.PUT.name(),
					HttpMethod.DELETE.name(), HttpMethod.PATCH.name()));

	/** Default method parameter: {@code _method}. */
	public static final String DEFAULT_METHOD_PARAM = "_method";

	private String methodParam = DEFAULT_METHOD_PARAM;


	/**
	 * Set the parameter name to look for HTTP methods.
	 * @see #DEFAULT_METHOD_PARAM
	 */
	public void setMethodParam(String methodParam) {
		Assert.hasText(methodParam, "'methodParam' must not be empty");
		this.methodParam = methodParam;
	}

	@Override
	protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain)
			throws ServletException, IOException {

		HttpServletRequest requestToUse = request;

		if ("POST".equals(request.getMethod()) && request.getAttribute(WebUtils.ERROR_EXCEPTION_ATTRIBUTE) == null) {
			String paramValue = request.getParameter(this.methodParam);
			if (StringUtils.hasLength(paramValue)) {
				String method = paramValue.toUpperCase(Locale.ENGLISH);
				if (ALLOWED_METHODS.contains(method)) {
					requestToUse = new HttpMethodRequestWrapper(request, method);
				}
			}
		}

		filterChain.doFilter(requestToUse, response);
	}


	/**
	 * Simple {@link HttpServletRequest} wrapper that returns the supplied method for
	 * {@link HttpServletRequest#getMethod()}.
	 */
	private static class HttpMethodRequestWrapper extends HttpServletRequestWrapper {

		private final String method;

		public HttpMethodRequestWrapper(HttpServletRequest request, String method) {
			super(request);
			this.method = method;
		}

		@Override
		public String getMethod() {
			return this.method;
		}
	}

}

@Configuration(proxyBeanMethods = false)
@ConditionalOnWebApplication(type = Type.SERVLET)
@ConditionalOnClass({ Servlet.class, DispatcherServlet.class, WebMvcConfigurer.class })
@ConditionalOnMissingBean(WebMvcConfigurationSupport.class)
@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE + 10)
@AutoConfigureAfter({ DispatcherServletAutoConfiguration.class, TaskExecutionAutoConfiguration.class,
		ValidationAutoConfiguration.class })
public class WebMvcAutoConfiguration {

    ...

    @Bean
    @ConditionalOnMissingBean(HiddenHttpMethodFilter.class)
    @ConditionalOnProperty(prefix = "spring.mvc.hiddenmethod.filter", name = "enabled", matchIfMissing = false)
    public OrderedHiddenHttpMethodFilter hiddenHttpMethodFilter() {
        return new OrderedHiddenHttpMethodFilter();
    }

    ...
}


@Configuration(proxyBeanMethods = false)
public class WebConfig{
    //自定义filter
    @Bean
    public HiddenHttpMethodFilter hiddenHttpMethodFilter(){
        HiddenHttpMethodFilter methodFilter = new HiddenHttpMethodFilter();
        methodFilter.setMethodParam("_m");
        return methodFilter;
    }
}

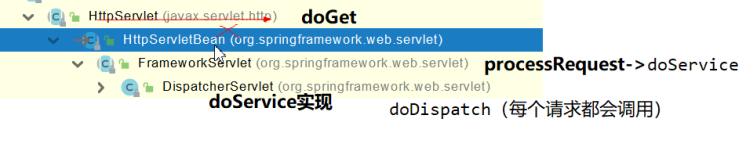

protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
    HttpServletRequest processedRequest = request;
    HandlerExecutionChain mappedHandler = null;
    boolean multipartRequestParsed = false;

    WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

    try {
        ModelAndView mv = null;
        Exception dispatchException = null;

        try {
            processedRequest = checkMultipart(request);
            multipartRequestParsed = (processedRequest != request);

            // 找到当前请求使用哪个Handler（Controller的方法）处理
            mappedHandler = getHandler(processedRequest);

            //HandlerMapping：处理器映射。/xxx->>xxxx
    ...
}

@Nullable
protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
    if (this.handlerMappings != null) {
        for (HandlerMapping mapping : this.handlerMappings) {
            HandlerExecutionChain handler = mapping.getHandler(request);
            if (handler != null) {
                return handler;
            }
        }
    }
    return null;
}

@RestController
public class ParameterTestController {


    //  car/2/owner/zhangsan
    @GetMapping("/car/{id}/owner/{username}")
    public Map<String,Object> getCar(@PathVariable("id") Integer id,
                                     @PathVariable("username") String name,
                                     @PathVariable Map<String,String> pv,
                                     @RequestHeader("User-Agent") String userAgent,
                                     @RequestHeader Map<String,String> header,
                                     @RequestParam("age") Integer age,
                                     @RequestParam("inters") List<String> inters,
                                     @RequestParam Map<String,String> params,
                                     @CookieValue("_ga") String _ga,
                                     @CookieValue("_ga") Cookie cookie){

        Map<String,Object> map = new HashMap<>();

//        map.put("id",id);
//        map.put("name",name);
//        map.put("pv",pv);
//        map.put("userAgent",userAgent);
//        map.put("headers",header);
        map.put("age",age);
        map.put("inters",inters);
        map.put("params",params);
        map.put("_ga",_ga);
        System.out.println(cookie.getName()+"===>"+cookie.getValue());
        return map;
    }


    @PostMapping("/save")
    public Map postMethod(@RequestBody String content){
        Map<String,Object> map = new HashMap<>();
        map.put("content",content);
        return map;
    }
}

@Controller
public class RequestController {

    @GetMapping("/goto")
    public String goToPage(HttpServletRequest request){

        request.setAttribute("msg","成功了...");
        request.setAttribute("code",200);
        return "forward:/success";  //转发到  /success请求
    }

    @GetMapping("/params")
    public String testParam(Map<String,Object> map,
                            Model model,
                            HttpServletRequest request,
                            HttpServletResponse response){
        map.put("hello","world666");
        model.addAttribute("world","hello666");
        request.setAttribute("message","HelloWorld");

        Cookie cookie = new Cookie("c1","v1");
        response.addCookie(cookie);
        return "forward:/success";
    }

    ///<-----------------主角@RequestAttribute在这个方法
    @ResponseBody
    @GetMapping("/success")
    public Map success(@RequestAttribute(value = "msg",required = false) String msg,
                       @RequestAttribute(value = "code",required = false)Integer code,
                       HttpServletRequest request){
        Object msg1 = request.getAttribute("msg");

        Map<String,Object> map = new HashMap<>();
        Object hello = request.getAttribute("hello");
        Object world = request.getAttribute("world");
        Object message = request.getAttribute("message");

        map.put("reqMethod_msg",msg1);
        map.put("annotation_msg",msg);
        map.put("hello",hello);
        map.put("world",world);
        map.put("message",message);

        return map;
    }
}

@Configuration(proxyBeanMethods = false)
public class WebConfig implements WebMvcConfigurer {
    @Override
    public void configurePathMatch(PathMatchConfigurer configurer) {

        UrlPathHelper urlPathHelper = new UrlPathHelper();
        // 不移除；后面的内容。矩阵变量功能就可以生效
        urlPathHelper.setRemoveSemicolonContent(false);
        configurer.setUrlPathHelper(urlPathHelper);
    }
}

@Configuration(proxyBeanMethods = false)
public class WebConfig{
    @Bean
    public WebMvcConfigurer webMvcConfigurer(){
        return new WebMvcConfigurer() {
                        @Override
            public void configurePathMatch(PathMatchConfigurer configurer) {
                UrlPathHelper urlPathHelper = new UrlPathHelper();
                // 不移除；后面的内容。矩阵变量功能就可以生效
                urlPathHelper.setRemoveSemicolonContent(false);
                configurer.setUrlPathHelper(urlPathHelper);
            }
        }
    }
}

@RestController
public class ParameterTestController {

    ///cars/sell;low=34;brand=byd,audi,yd
    @GetMapping("/cars/{path}")
    public Map carsSell(@MatrixVariable("low") Integer low,
                        @MatrixVariable("brand") List<String> brand,
                        @PathVariable("path") String path){
        Map<String,Object> map = new HashMap<>();

        map.put("low",low);
        map.put("brand",brand);
        map.put("path",path);
        return map;
    }

    // /boss/1;age=20/2;age=10

    @GetMapping("/boss/{bossId}/{empId}")
    public Map boss(@MatrixVariable(value = "age",pathVar = "bossId") Integer bossAge,
                    @MatrixVariable(value = "age",pathVar = "empId") Integer empAge){
        Map<String,Object> map = new HashMap<>();

        map.put("bossAge",bossAge);
        map.put("empAge",empAge);
        return map;

    }

}

public class DispatcherServlet extends FrameworkServlet {

    protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
        HttpServletRequest processedRequest = request;
        HandlerExecutionChain mappedHandler = null;
        boolean multipartRequestParsed = false;

        WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

        try {
            ModelAndView mv = null;
            Exception dispatchException = null;

            try {
                processedRequest = checkMultipart(request);
                multipartRequestParsed = (processedRequest != request);

                // Determine handler for the current request.
                mappedHandler = getHandler(processedRequest);
                if (mappedHandler == null) {
                    noHandlerFound(processedRequest, response);
                    return;
                }

                // Determine handler adapter for the current request.
                HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());
                ...

public class DispatcherServlet extends FrameworkServlet {

    /** Detect all HandlerAdapters or just expect "handlerAdapter" bean?. */
    private boolean detectAllHandlerAdapters = true;

    ...

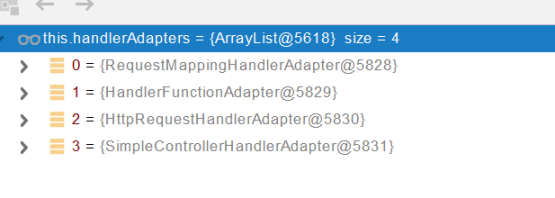

    private void initHandlerAdapters(ApplicationContext context) {
        this.handlerAdapters = null;

        if (this.detectAllHandlerAdapters) {
            // Find all HandlerAdapters in the ApplicationContext, including ancestor contexts.
            Map<String, HandlerAdapter> matchingBeans =
                BeanFactoryUtils.beansOfTypeIncludingAncestors(context, HandlerAdapter.class, true, false);
            if (!matchingBeans.isEmpty()) {
                this.handlerAdapters = new ArrayList<>(matchingBeans.values());
                // We keep HandlerAdapters in sorted order.
                AnnotationAwareOrderComparator.sort(this.handlerAdapters);
            }
        }
     ...

public class DispatcherServlet extends FrameworkServlet {

	protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
        ModelAndView mv = null;

        ...

        // Determine handler for the current request.
        mappedHandler = getHandler(processedRequest);
        if (mappedHandler == null) {
            noHandlerFound(processedRequest, response);
            return;
        }

        // Determine handler adapter for the current request.
        HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

        ...
		//本节重点
        // Actually invoke the handler.
        mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

public class RequestMappingHandlerAdapter extends AbstractHandlerMethodAdapter
		implements BeanFactoryAware, InitializingBean {

    ...

    //AbstractHandlerMethodAdapter类的方法，RequestMappingHandlerAdapter继承AbstractHandlerMethodAdapter
	public final ModelAndView handle(HttpServletRequest request, HttpServletResponse response, Object handler)
        throws Exception {

        return handleInternal(request, response, (HandlerMethod) handler);
    }

	@Override
	protected ModelAndView handleInternal(HttpServletRequest request,
			HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {
    	ModelAndView mav;
        //handleInternal的核心
        mav = invokeHandlerMethod(request, response, handlerMethod);//解释看下节
		//...
		return mav;
    }
}

@Nullable
protected ModelAndView invokeHandlerMethod(HttpServletRequest request,
                                           HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {

    ServletWebRequest webRequest = new ServletWebRequest(request, response);
    try {
        WebDataBinderFactory binderFactory = getDataBinderFactory(handlerMethod);
        ModelFactory modelFactory = getModelFactory(handlerMethod, binderFactory);

        ServletInvocableHandlerMethod invocableMethod = createInvocableHandlerMethod(handlerMethod);
        if (this.argumentResolvers != null) {//<-----关注点
            invocableMethod.setHandlerMethodArgumentResolvers(this.argumentResolvers);
        }

        ...

public class RequestMappingHandlerAdapter extends AbstractHandlerMethodAdapter
		implements BeanFactoryAware, InitializingBean {

    @Nullable
    private HandlerMethodArgumentResolverComposite argumentResolvers;

    @Override
    public void afterPropertiesSet() {
        ...
    	if (this.argumentResolvers == null) {//初始化argumentResolvers
        	List<HandlerMethodArgumentResolver> resolvers = getDefaultArgumentResolvers();
            this.argumentResolvers = new HandlerMethodArgumentResolverComposite().addResolvers(resolvers);
        }
        ...
    }

    //初始化了一堆的实现HandlerMethodArgumentResolver接口的
	private List<HandlerMethodArgumentResolver> getDefaultArgumentResolvers() {
		List<HandlerMethodArgumentResolver> resolvers = new ArrayList<>(30);

		// Annotation-based argument resolution
		resolvers.add(new RequestParamMethodArgumentResolver(getBeanFactory(), false));
		resolvers.add(new RequestParamMapMethodArgumentResolver());
		resolvers.add(new PathVariableMethodArgumentResolver());
		resolvers.add(new PathVariableMapMethodArgumentResolver());
		resolvers.add(new MatrixVariableMethodArgumentResolver());
		resolvers.add(new MatrixVariableMapMethodArgumentResolver());
		resolvers.add(new ServletModelAttributeMethodProcessor(false));
		resolvers.add(new RequestResponseBodyMethodProcessor(getMessageConverters(), this.requestResponseBodyAdvice));
		resolvers.add(new RequestPartMethodArgumentResolver(getMessageConverters(), this.requestResponseBodyAdvice));
		resolvers.add(new RequestHeaderMethodArgumentResolver(getBeanFactory()));
		resolvers.add(new RequestHeaderMapMethodArgumentResolver());
		resolvers.add(new ServletCookieValueMethodArgumentResolver(getBeanFactory()));
		resolvers.add(new ExpressionValueMethodArgumentResolver(getBeanFactory()));
		resolvers.add(new SessionAttributeMethodArgumentResolver());
		resolvers.add(new RequestAttributeMethodArgumentResolver());

		// Type-based argument resolution
		resolvers.add(new ServletRequestMethodArgumentResolver());
		resolvers.add(new ServletResponseMethodArgumentResolver());
		resolvers.add(new HttpEntityMethodProcessor(getMessageConverters(), this.requestResponseBodyAdvice));
		resolvers.add(new RedirectAttributesMethodArgumentResolver());
		resolvers.add(new ModelMethodProcessor());
		resolvers.add(new MapMethodProcessor());
		resolvers.add(new ErrorsMethodArgumentResolver());
		resolvers.add(new SessionStatusMethodArgumentResolver());
		resolvers.add(new UriComponentsBuilderMethodArgumentResolver());
		if (KotlinDetector.isKotlinPresent()) {
			resolvers.add(new ContinuationHandlerMethodArgumentResolver());
		}

		// Custom arguments
		if (getCustomArgumentResolvers() != null) {
			resolvers.addAll(getCustomArgumentResolvers());
		}

		// Catch-all
		resolvers.add(new PrincipalMethodArgumentResolver());
		resolvers.add(new RequestParamMethodArgumentResolver(getBeanFactory(), true));
		resolvers.add(new ServletModelAttributeMethodProcessor(true));

		return resolvers;
	}

}

public class HandlerMethodArgumentResolverComposite implements HandlerMethodArgumentResolver {

	private final List<HandlerMethodArgumentResolver> argumentResolvers = new ArrayList<>();

    ...

	public HandlerMethodArgumentResolverComposite addResolvers(
			@Nullable HandlerMethodArgumentResolver... resolvers) {

		if (resolvers != null) {
			Collections.addAll(this.argumentResolvers, resolvers);
		}
		return this;
	}

    ...
}

public interface HandlerMethodArgumentResolver {

    //当前解析器是否支持解析这种参数
	boolean supportsParameter(MethodParameter parameter);

	@Nullable//如果支持，就调用 resolveArgument
	Object resolveArgument(MethodParameter parameter, @Nullable ModelAndViewContainer mavContainer,
			NativeWebRequest webRequest, @Nullable WebDataBinderFactory binderFactory) throws Exception;

}

@Nullable
protected ModelAndView invokeHandlerMethod(HttpServletRequest request,
                                           HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {

    ServletWebRequest webRequest = new ServletWebRequest(request, response);
    try {
        WebDataBinderFactory binderFactory = getDataBinderFactory(handlerMethod);
        ModelFactory modelFactory = getModelFactory(handlerMethod, binderFactory);

        ServletInvocableHandlerMethod invocableMethod = createInvocableHandlerMethod(handlerMethod);
        if (this.argumentResolvers != null) {
            invocableMethod.setHandlerMethodArgumentResolvers(this.argumentResolvers);
        }
        if (this.returnValueHandlers != null) {//<---关注点
            invocableMethod.setHandlerMethodReturnValueHandlers(this.returnValueHandlers);
        }
     ...
